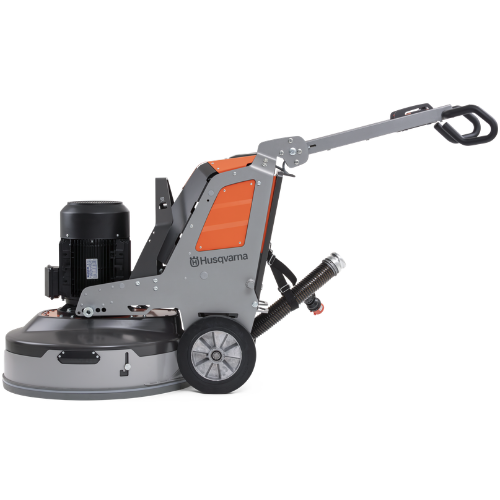

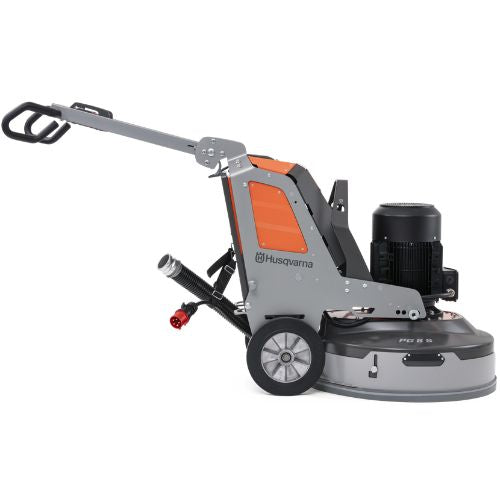

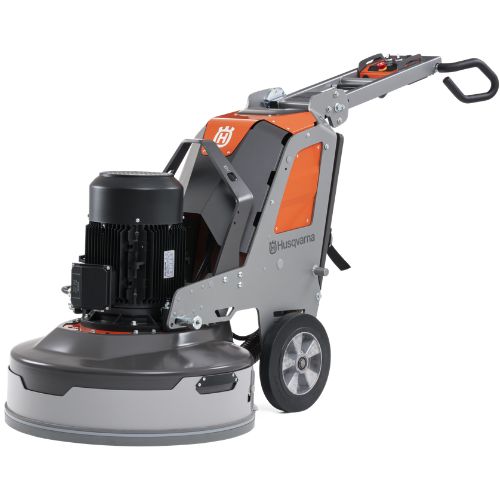

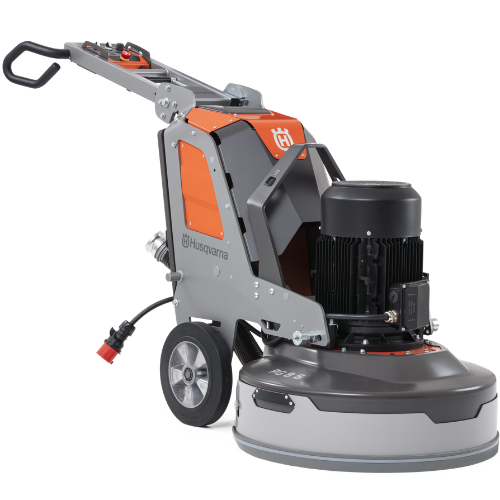

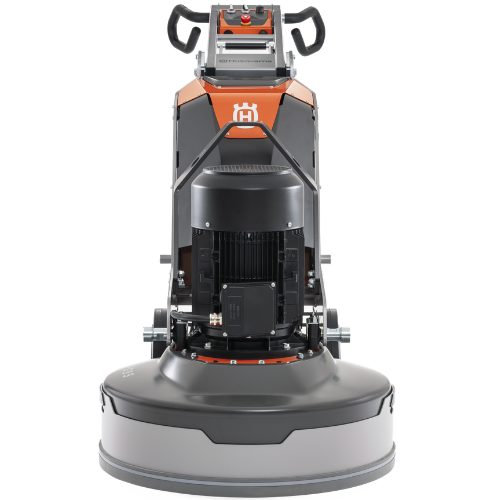

The PG 8 S is a powerful and robust planetary floor grinder with a focus on simplicity. This is a good choice for grinding and polishing jobs, and for users who prefer a non-motorized drive.
Easy to use, the PG 8 S has a large capacity thanks to the 32 in / 800 mm grinding width and powerful motor. Adjustable weights for extra grinding pressure are optional.
The hermetically sealed design of the grinding head and electrical cabinet, along with the robustness of the components, contributes to high reliability and low maintenance.
Optional: Weights, water kit
Tool holder: EZchange™
Features:
Sealed to last: Sealed grinding head with 1000 hrs service interval. This prevents dust or water to intrude and damage components.

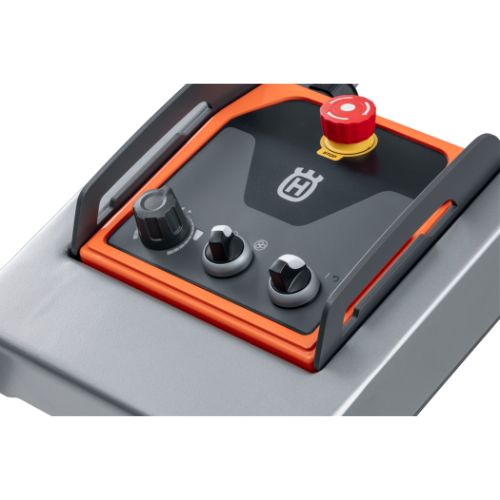

Protected Electronics: Dust sealed electrical cabinet with external cooling technology. This prevents dust to intrude and damage components.
Improved Dust Pick-Up: The robust steel floating shroud follows the floor surface for optimal dust pick-up – no adjustments needed.
Ergonomic Handle: Adjustable handle for better ergonomics.

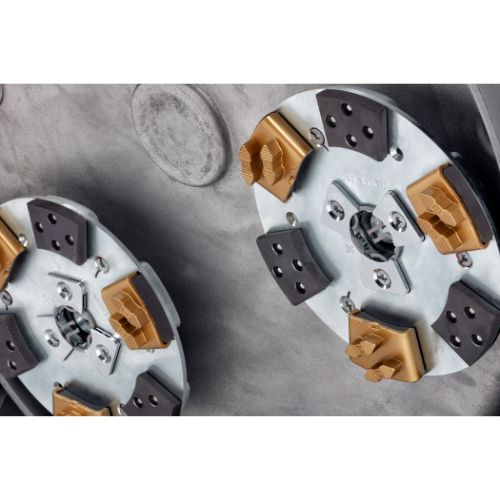

Time Saving Tool Change: EZchange™ is an instant and hassle-free system for changing diamond tooling.
Adjustable Grinding Pressure: The optional weights are a must have for every professional grinder, as they allow to adjust the grinding pressure in three pre-set positions. They also make tilting the machine that much easier.
Fleet Ready: Husqvarna Fleet Services™ is a digital, cloud-based asset management service that gathers and presents key machine data. Machine sensors are either embedded or retrofitted to the exterior of the machine.
Quick release of tool holders: Tool holder plates are easily removed without the need of special tooling.
EZchange™ Airflow tool holders: The fuel system reduces the risk of freezing when using liquid withdrawal propane.
Specifications for 230 Volt Grinder:
Engine:
Engine Power (As rated by the engine manufacturer): 14.8 hp
Motor:
Power source Corded
Rated input power 14.8 hp
Phases 3ph
Voltage 200-240 V
Rated Current 50A
Frequency 50-60 Hz
Pins 3P+E
Specifications for 480 Volt Grinder:
Engine:
Engine Power (As rated by the engine manufacturer): 14.8 hp
Motor:
Power source Corded
Rated input power 14.8 hp
Phases 3ph
Voltage 440-480 V
Rated Current 30A
Frequency 50-60 Hz
Pins 3P+E
Equipment:
Grinding width 31.5"

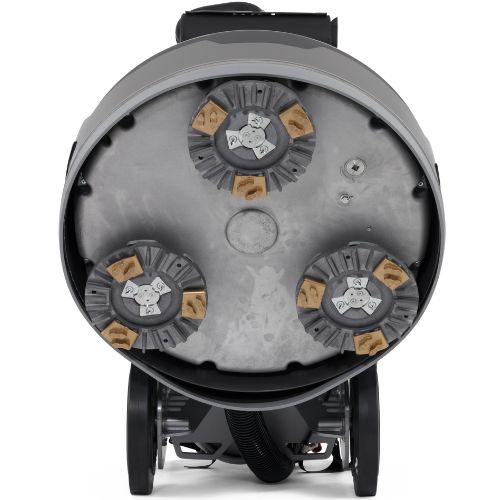

Number of grinding discs 3
Direction of rotation One direction
Grinding disc diameter 9.1"
Grinding disc speed min 420 rpm
Grinding disc speed max 1176 rpm
Transmission:
Type of operation Push
Dimensions:
Product length 54.6"
Product width 33"
Product height 44.7"
Weight 1120 pounds
