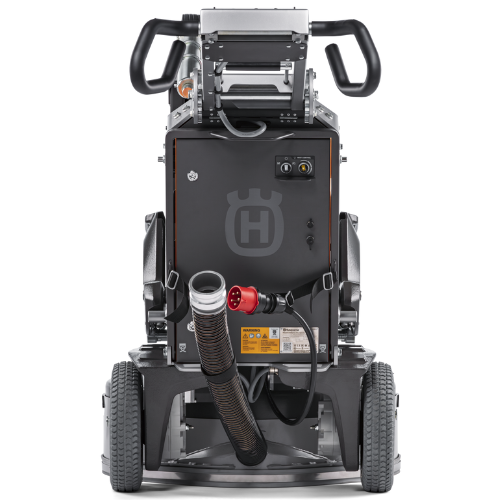

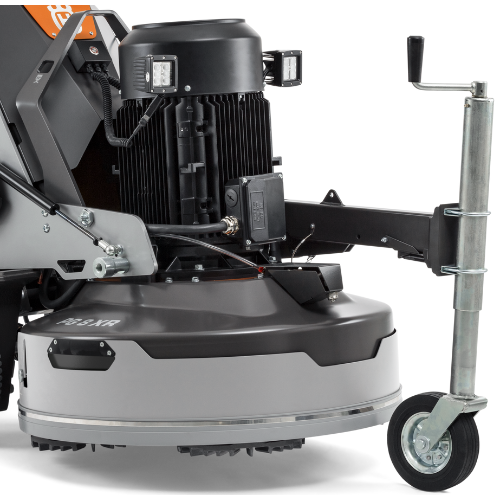

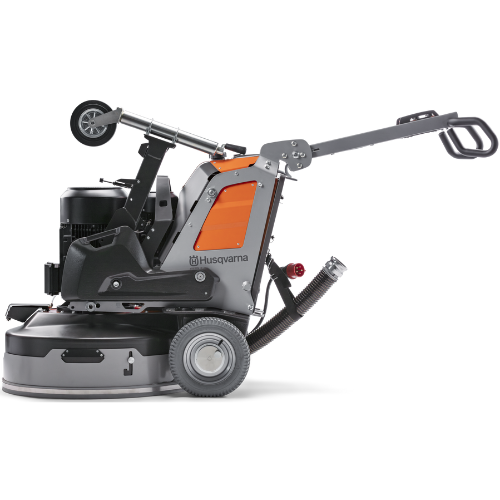

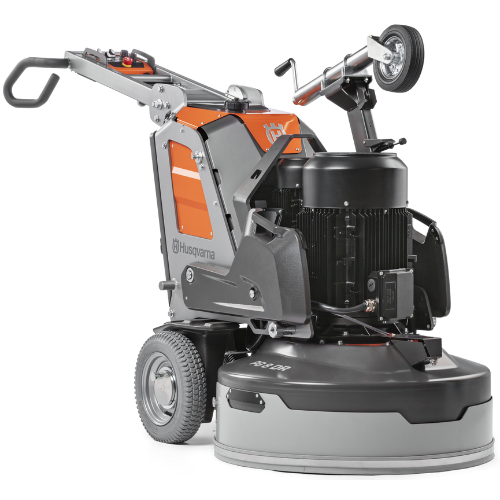

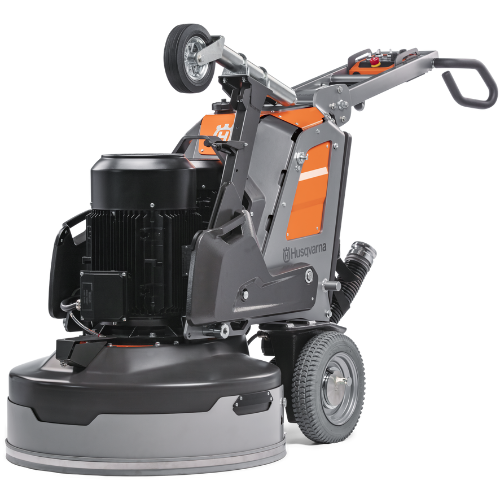

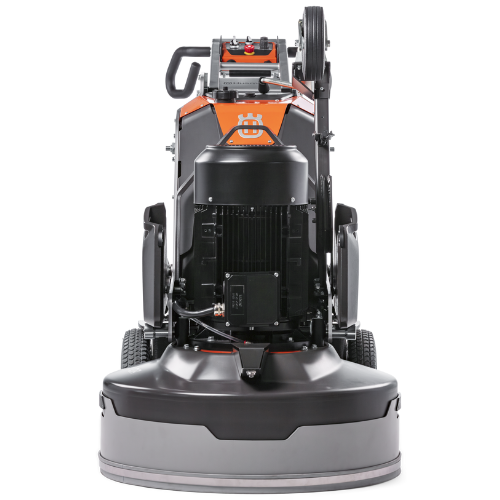

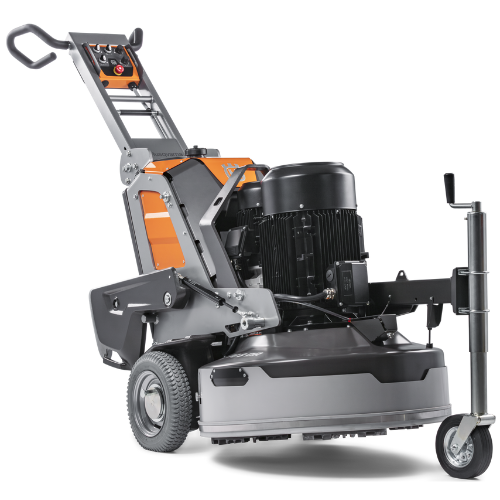

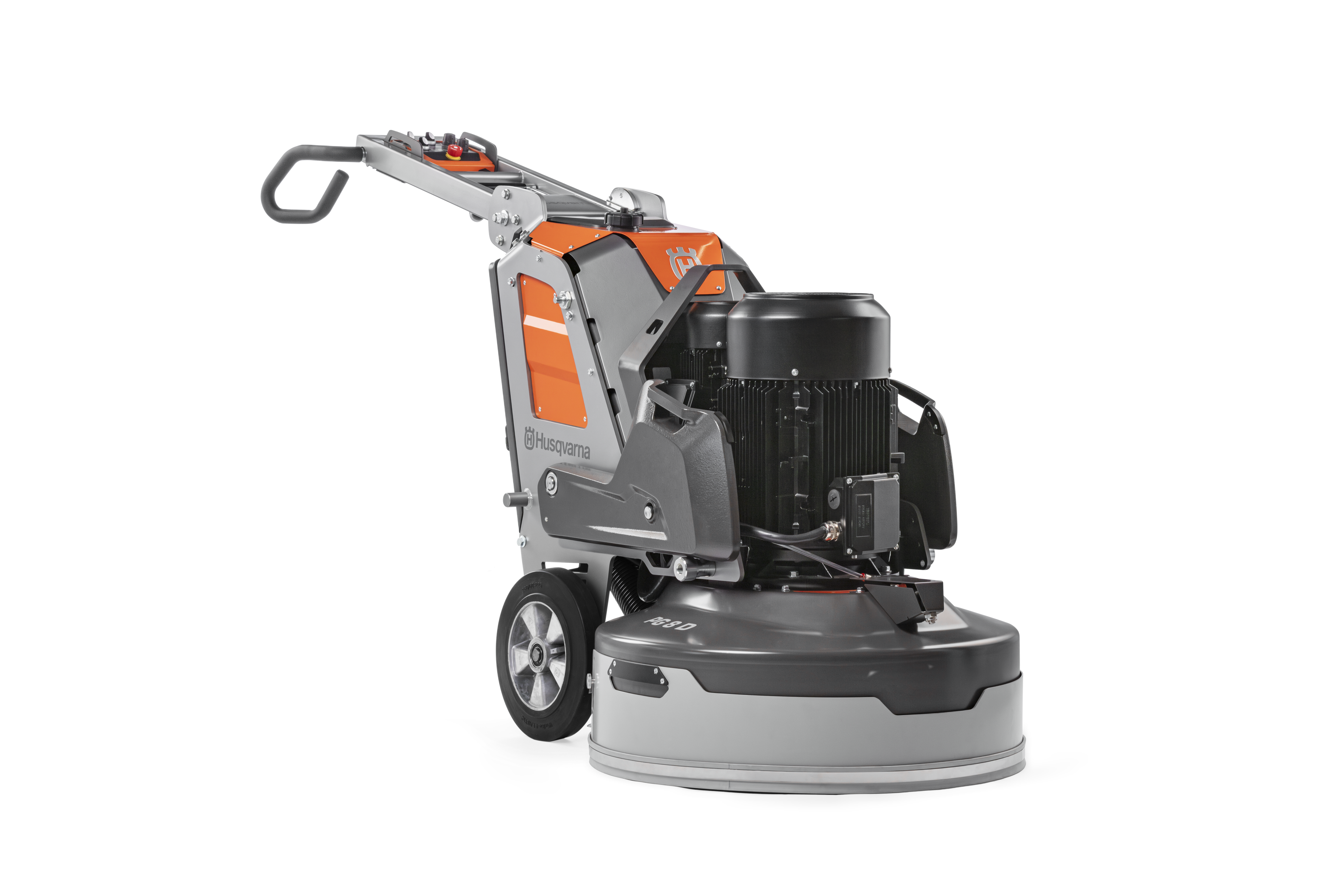

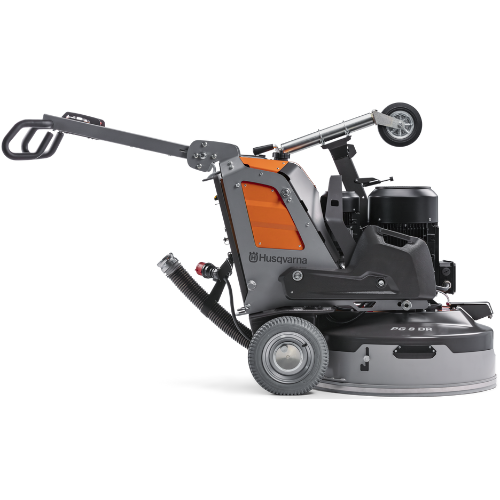

PG 8 D 31.5" 22.1 Hp 480 V Planetary Floor Grinder Husqvarna #970605005

The PG 8 D is a powerful planetary floor grinder with Dual Drive Technology™. This feature lets you adjust the grinding discs' rotation speed and direction independently of the drum.

The machine is an excellent choice for all applications, from preparing to grinding and polishing concrete and stone floors. The mist cooler system cools the diamond tools, significantly increasing the removal rate and reducing the risk of glazing the tools (compared with not using the mist cooler system). If needed, the integrated adjustable weights can be used to increase grinding pressure and productivity.

Ergonomic features like the integrated weights and adjustable handle and handle bar make handling the machine more convenient.

The hermetically sealed design of the grinding head and electrical cabinet, along with the robustness of the components, contributes to high reliability and low maintenance.

Optional: LED lights, water kit
Tool holder: EZchange™ Airflow

Features:

High removal and total control: Dual Drive technology™ makes it possible to adjust the grinding discs' rotation speed and direction independently of the drum. This allows you to optimise your tools and grind as efficiently as possible. The machine's high grinding pressure means a high removal rate.

Higher removal rate with mist cooler system: The mist cooler system sprays a fine mist on the floor, which cools the diamond tools. This makes it possible to achieve a better cut, reduces the risk of glazing the tools, and significantly increases productivity.

Sealed to last: Sealed grinding head with 1000 hrs service interval. This prevents dust or water to intrude and damage components.

Protected electronics: Dust sealed electrical cabinet with external cooling technology. This prevents dust to intrude and damage components.

Improved dust pick-up: The robust steel floating shroud follows the floor surface for optimal dust pick-up – no adjustments needed.

Ergonomic handle: Adjustable handle for better ergonomics.

Time saving tool change: EZchange™ is an instant and hassle-free system for changing diamond tooling.

Adjustable grinding pressure: The integrated weights allow you to adjust the grinding pressure into different preset positions. They also make it easier to tilt the machine.

Magnetic LED lights: The optional light kit substantially improves visibility of the floor while you grind. Thanks to magnetic attachments, they are easy to position and adjust.

Fleet ready: Husqvarna Fleet Services™ is a digital, cloud-based asset management service that gathers and presents key machine data. Machine sensors are either embedded or retrofitted to the exterior of the machine.

Quick release of tool holders: Tool holder plates are easily removed without the need of special tooling.

EZchange™ Airflow tool holders: The EZchange™ tool holder with Airflow technology creates an increased and controlled airflow around the tools. This cools the tools and directs dust towards the extractor.

Specifications:

Engine: Engine Power (As rated by the engine manufacturer) 22.1 hp

Motor:
Power source Corded
Rated input power 22.1 hp
Phases 3 ph
Voltage 440-480 V
Rated current 30 A
Frequency 50-60 Hz
Pins 3P+E

Equipment:
Grinding width 31.5"

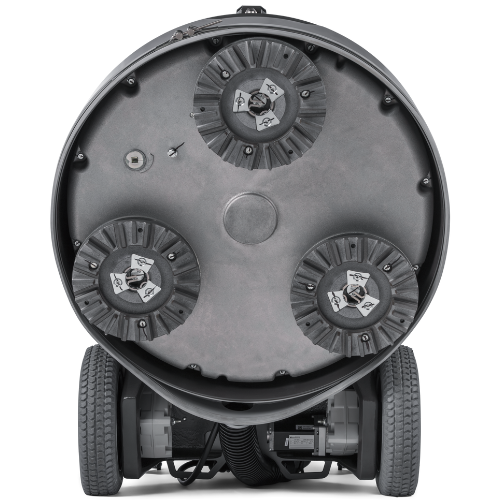

Number of grinding discs 3
Direction of rotation Both directions
Grinding disc diameter 10.6"
Grinding disc speed min 420 rpm
Grinding disc speed max 1,176 rpm

Transmission:
Type of operation Push

Dimensions:
Product length 54.8"
Product width 33"
Product height 44.6"
Weight 1,257 pounds
