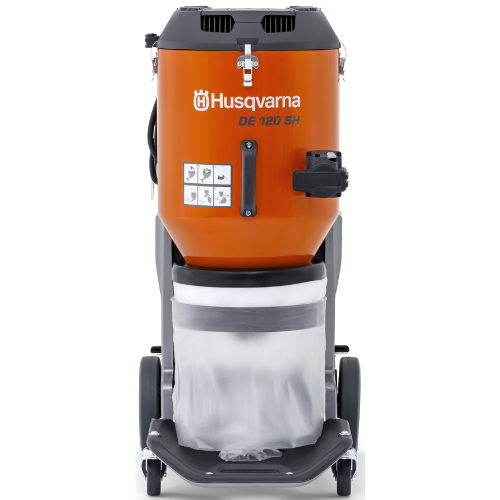

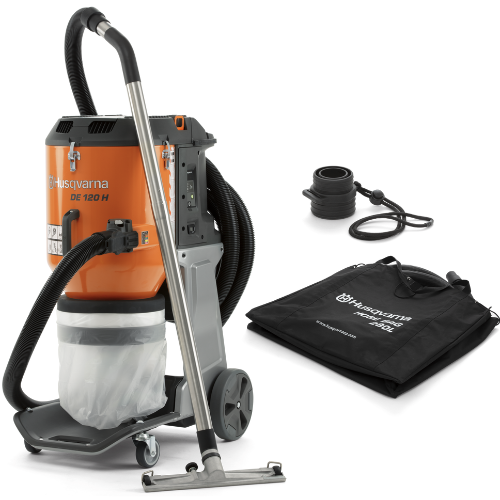

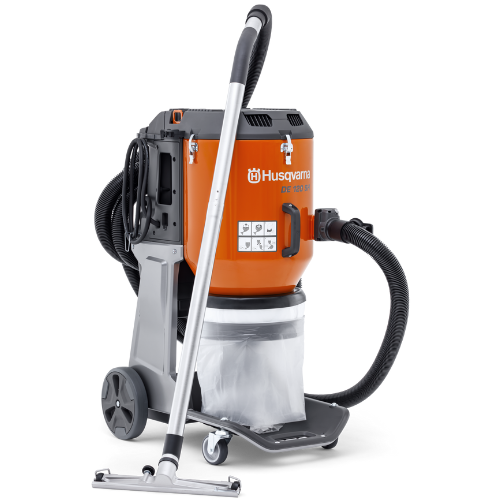

The DE 120 SH is the latest addition to our DE line dust extractor range. Designed with simplicity on top of mind, but without compromising on performance.
It is a perfect partner for those requesting a simple full flow cyclonic jet-pulse machine with market leading weight and size ratio at a very attractive price point.

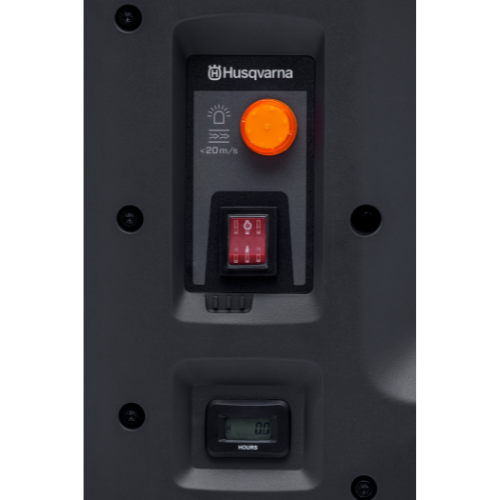

The DE 120 SH is fully H class with HEPA H13 filtration efficiency according to EN1822-1 and MIL-STD-282. Updated regulations in the H class standard (EN 60335-2-69: Annex AA) have opened up for the possibility to move away from audible to visual alarm. The new DE120S H HMI only consists of a visual light that flashes when air velocity in the system falls below 20 m/s or 60 ft/s and a filter cleaning procedure needs to take place.
The machine is operated by an on/off switch, with a main power on the opposite side of the machine (same as DE120 H).
The DE120 SH does not have electronically controlled airflow (e-Flow), multi hose selector, or embedded connectivity or predictive maintenance services.
Easy to use, maintain and service
Same weight and size advantage as the standard DE120H

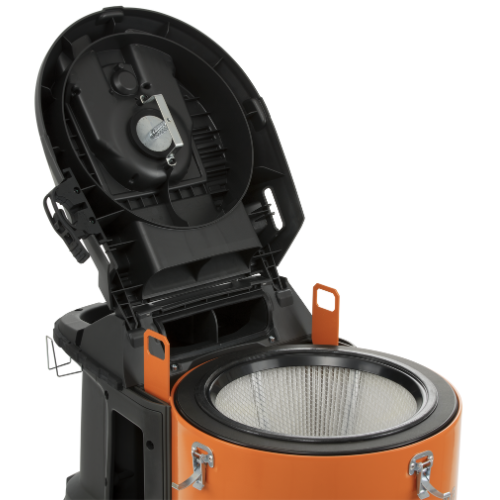

Easy to maintain and tear down to access common service parts

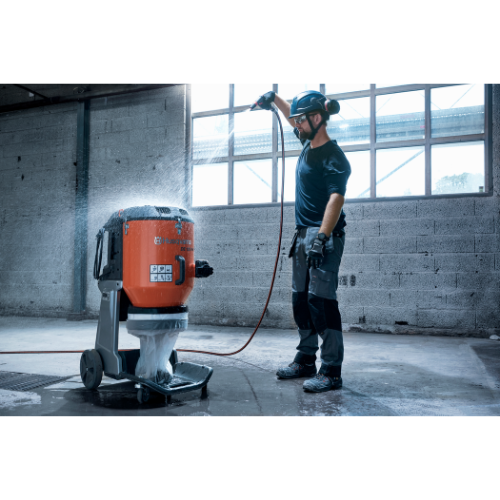

IP55 certified that allows efficient decontamination with water after use
Ample smart accessories to extend usability of the machine
Features:
Continuous high performance: The ingenious e-flow system automatically adjusts air flow to prolong time between filter cleanings, allowing operators to work longer without interruption.

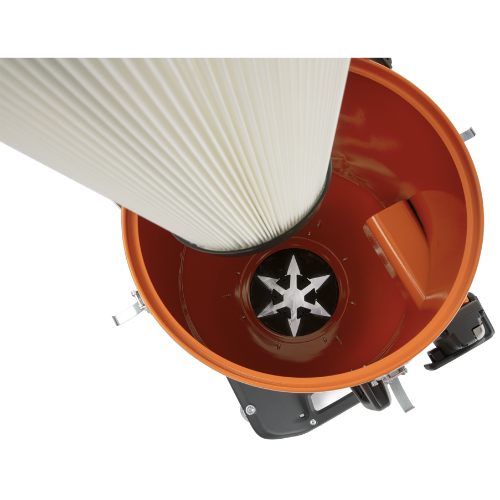

High safety standards: The dust extractor complies with the latest H-class standards for dust extractors for heavy-duty usage. It contains a HEPA filter (with EN1822 certification) which is separated from the pre-filter. An integrated filter alarm with adjustable hose diameter indicates when it is time to clean the filter. Cleaning can be done by simply pressing a button.

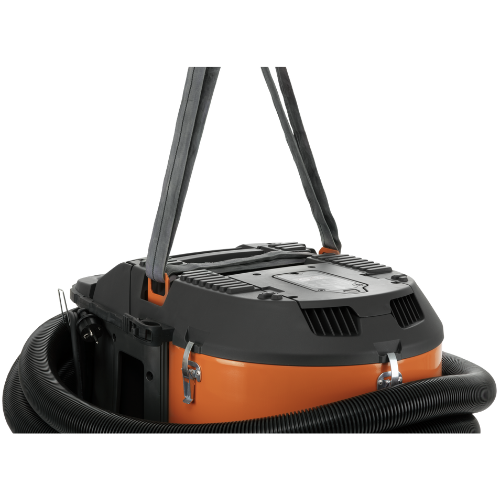

Easy to transport: Thanks to its compact size and light weight, the dust extractor is easy to transport. Smart details, such as lifting hooks, the possibility to attach hoses, wand and floor tool to the machine, and the ability to drive it on its two wheels allow for smooth maneuvering.
Easy to clean and maintain: The high water protection standard allows for easy cleaning and decontamination of the machine. The HMI gives warnings on operational maintenance for early and on-site troubleshooting.
Specifications:
Motor:
Rated input power 2.45 hp
Phases 1 ph
Voltage 120 V
Rated current 15 A
Frequency 50-60 Hz
Max. vacuum 2.9 psi
Power source Corded
Product data:
Air flow 212 cfm
Airflow at turbine 253 cfm
Dimensions:
Product length 32.1"
Product width 21.3"
Product height 44.3"
Weight 84.9 pounds
